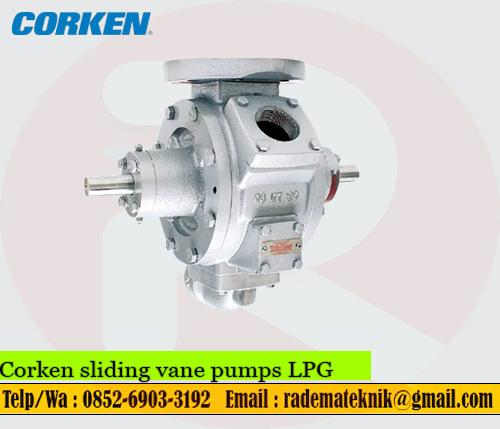

Corken sliding vane pumps LPG

Jual Pumps Corken LPG

Corken sliding vane pumps LPG are know as a Coro-Vane and are used for propane, butane, and agricultural ammonia. They are rated for a maximum working pressure of 400 psi (27.6 bar) and have O-ring construction throughout. The internal relief valve is pre-set at the factory and is not adjustable. They are available with one standard mechanical seal approved for propane, butane and agricultural ammonia. Applications include bulk pump transfer, propane delivery truck and transport. Available in 2” and 3” size

Operating Specifications Corken sliding vane pumps LPG

Flow rates up to 195 gpm (738 l/min)
Working pressures up to 400 psi (27.6)
Differential pressures up to 125 psi (8.6 bar)
Temperature range: -25 to 225 °F (-32 to 107 °C)

Materials Corken sliding vane pumps LPG

Pump casing and heads: Ductile iron
Cam and sideplates: Gray iron
Rotor and flanges: Ductile iron
Seal seat: Stainless steel or Ni-resist
O-rings: Buna-N, Neoprene®. Registered trademark of DuPont.
Vanes: Advanced polymers

Deskripsi

Features Corken sliding vane pumps LPG

Self-adjusting sliding vanes maximizes performance
Cam and sideplates can be replaced. Sideplates are reversible
Maintenance is simple and cost effective: By simply removing the pump head, you can easily replace the internals without disturbing the piping
Can handle small amounts of vapor so they are ideal for liquefied gases
Excellent suction lift is great for clearing suction and discharge lines
Internal relief valve is pre-set at the factory and is not adjustable
